UL11109
UL11109 hook-up wire with PVC insulation, UL-recognized and rated 105°C/600V. Provides durable, flexible, and reliable wiring for appliances, control panels, and industrial machinery.

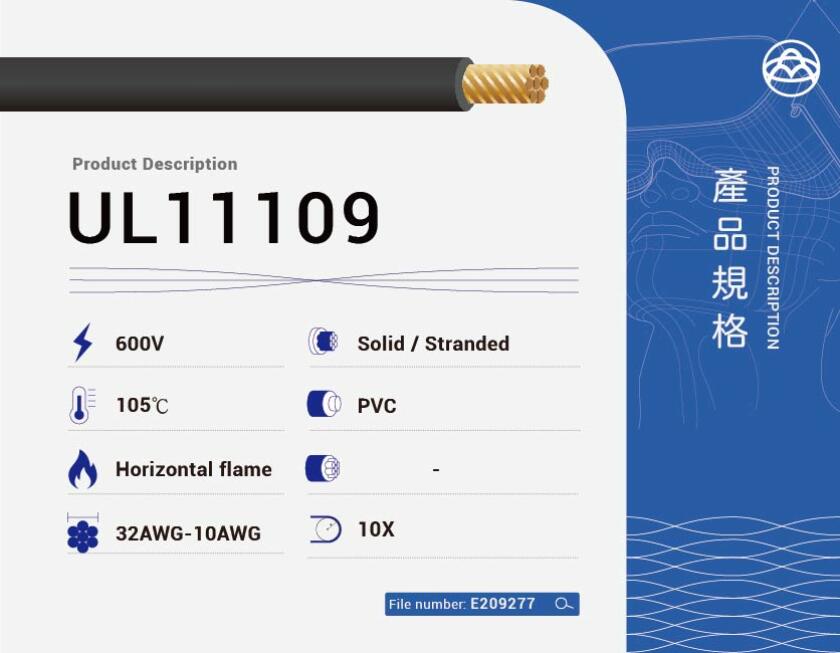

UL11109 Hook-Up Wire – 600V 105°C PVC-Insulated Wire for Internal Electrical Applications

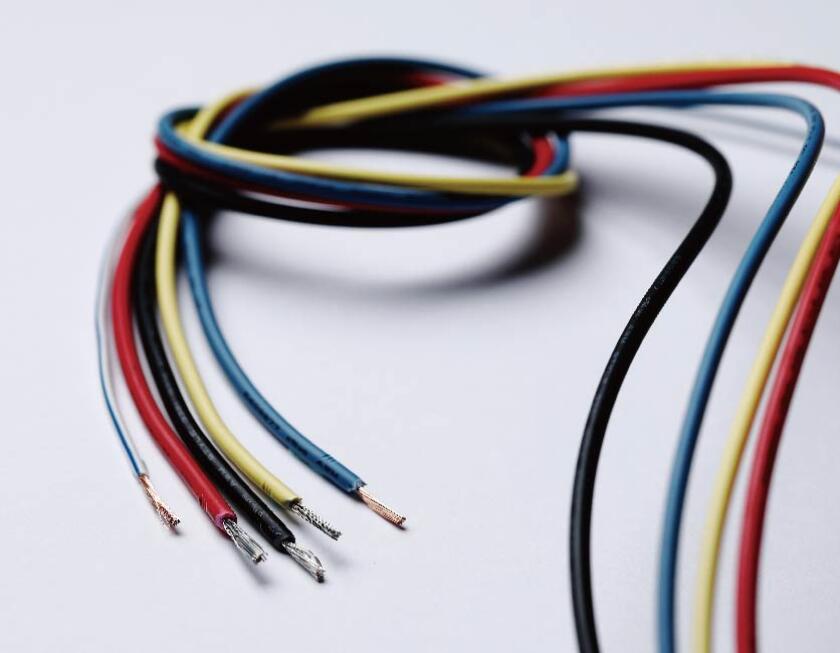

UL11109 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electrical and electronic equipment. Rated for 600V and operating temperatures up to 105°C, it features a durable PVC insulation, providing reliable performance in various applications.
This wire is suitable for applications requiring dependable signal transmission and durability, such as in appliances, control panels, and industrial machinery. Its construction allows for flexibility in routing while maintaining compliance with safety standards.
Key Features
Voltage Rating: 600V
Temperature Rating: 105°C
Conductor Sizes: 32 AWG to 10 AWG, solid or stranded, bare or tinned copper
Insulation: Extruded PVC, minimum average thickness of 20 mils
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 11109
RoHS Compliant
Applications
Internal wiring of electrical and electronic equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation
UL11109 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
