3A PLUS ultra-thin halogen-free SATA/SAS cables with 1.25 mm flat design support SATA III 6Gbps, SAS 12G/24G. Flexible and reliable for servers, data centers, and industrial computing.


SATA / SAS Cable | Ultra-Thin 1.25mm Flat Cable for 6G / 12G / 24G Storage Systems


3A PLUS offers ultra-thin halogen-free SATA and SAS cables featuring 1.25mm flat design and high flexibility for space-constrained installations. Supporting SATA III (6Gbps), SAS 12G, and SAS 24G protocols, this series is ideal for internal server storage wiring, data center modules, and industrial computing applications. Custom lengths, connector types, and color-coded options are available to match your system needs.


Features

  • Supported Protocols: SATA III (6Gbps), SAS 12G / 24G

  • Cable Type: 1.25mm ultra-thin halogen-free flat cable

  • Bendability: 180°, suitable for tight routing

  • Cable Length: 60cm standard (custom lengths available)

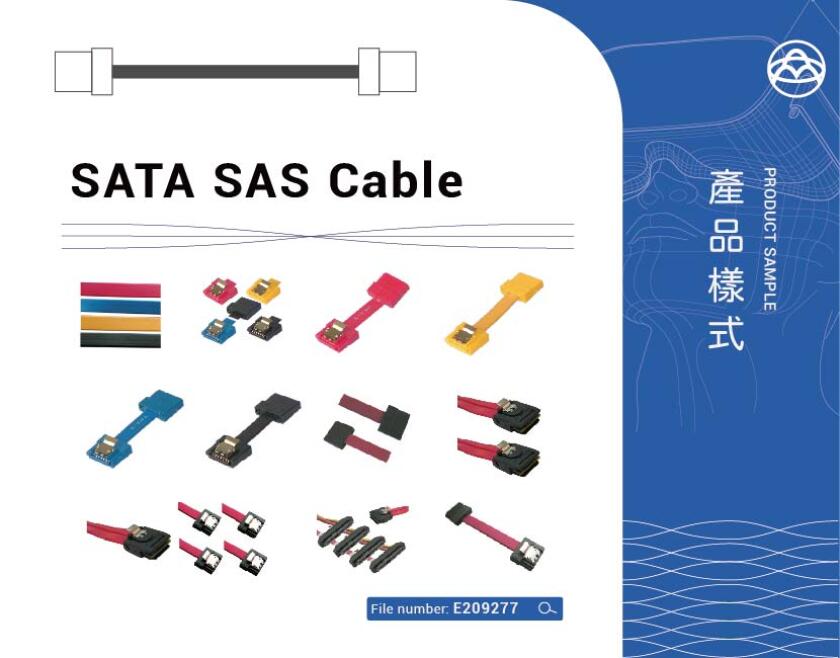

  • Connector Types: SATA 7P / miniSAS 36P / SAS 29P / Slim SATA

  • Connector Options: With latch / without latch / IDC optional

  • Color Options: Black / Blue / Yellow / Red (MOQ for some colors)

  • OEM Support: Available for connector/cable customizations


Applications

  • Internal SATA / SAS storage connection

  • HDD / SSD data transfer wiring

  • Server or RAID backplane interconnect

  • MiniSAS to SATA/SAS multi-lane breakout (1 to 4)

  • Compact cable routing in IPC and high-density storage enclosures
