MiniSAS HD Cable
3A PLUS MiniSAS HD cables for SAS 3.0/4.0 with 100Ω impedance support 8643/8087 connections. Ideal for servers, RAID, and storage enclosures with multi-lane or fan-out options.
MiniSAS HD Cable | High-Speed SAS 3/4 Transmission for Storage Backplanes
3A PLUS provides MiniSAS HD (High-Density) cable solutions designed for SAS 3.0 and SAS 4.0 high-speed storage environments. With a characteristic impedance of 100 Ω, these cables support internal MiniSAS 8643 / 8087 connections and are ideal for server backplanes, RAID arrays, and storage enclosures. Available in multi-lane and fan-out configurations, including SATA, SAS, and sideband breakout combinations.
Features
Signal Standards: SAS 3.0 / SAS 4.0
Impedance: 100 Ω ±10%
Connector Types:
MiniSAS 26M / 36M / 50M
SAS26F / SAS32F / SAS36F / SAS50F
SATA 7F

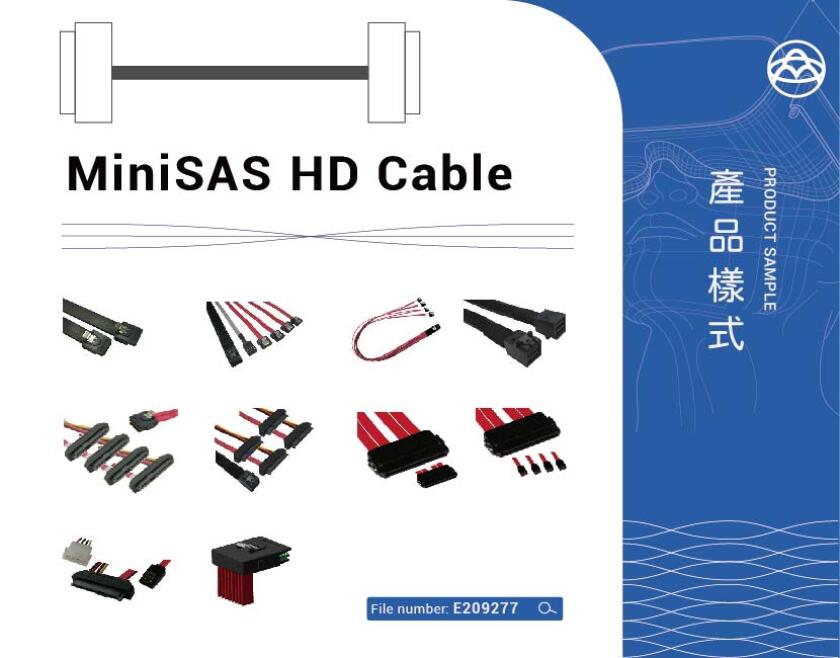

Cable Types:
Host-to-Device
Multi-SATA Fan-out
Sideband-included
Driver Extension
Lengths: 48 cm to 100 cm (custom available)
Applications
Internal cabling between storage controllers and HDD/SSD arrays
Server RAID backplanes
High-speed SAS interconnects in data centers
Multi-lane SATA breakout from SAS controllers
IPC and high-density storage server wiring
