USB 4.0 Cable (key A)
USB 4.0 Key A Cable Series by 3A PLUS connects motherboard headers to front I/O, supporting USB 3.2 Gen2x2 and reversible output. Compact, efficient design for high-speed access.
USB 4.0 Key A Cable | Internal-to-External Cable for Front Panel Expansion
The USB 4.0 Key A Cable Series from 3A PLUS is a high-speed internal-to-external solution designed to connect motherboard USB headers to front panel I/O modules. With support for USB 3.2 Gen2x2 and reversible plug output, this cable provides a clean, compact, and efficient interface for high-speed external access.
Key Features
USB Version: USB 4.0 / USB 3.2 Gen2x2
Data Rate: Up to 20 Gbps (Type-C), 10 Gbps (Type-A)
Cable Thickness: 1.25 mm ultra-slim flat profile

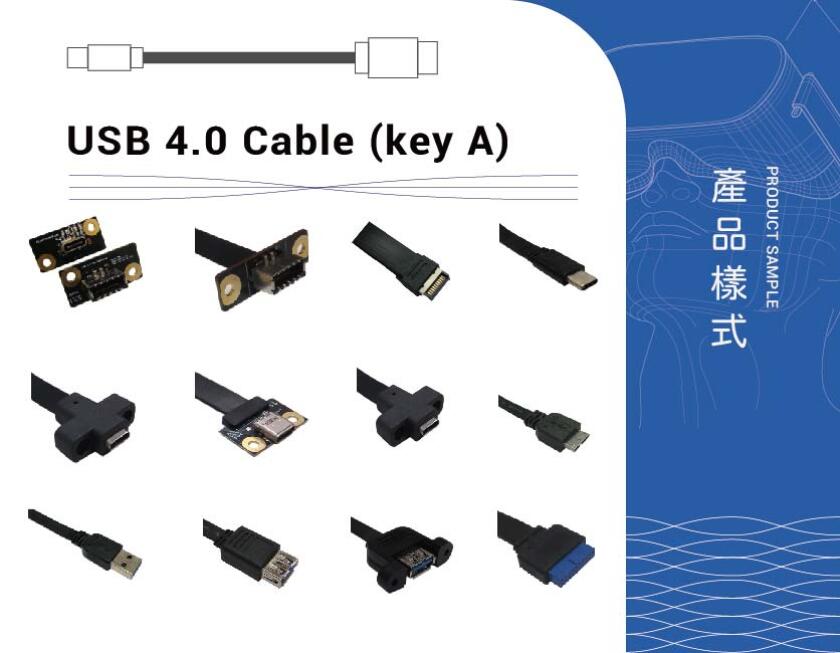

Connector Options: Key A 20M/F, C24F w/ Ear, C24F R/A, A9M, Micro-B
Length Options: Up to 100 cm
Power Output: 3A / 5V (Intel spec compliant)
Design: Internal-to-external header extension, hot-swappable and reversible
Certification: Multi-national patents, OEM/ODM supported
Applications
Desktop motherboard to front panel USB expansion
USB Type-C / Type-A port relocation
Compact PC cases, gaming chassis, and industrial PCs
USB 3.2 Gen2x2 high-speed interface deployment
Workstation, server, and docking station setups
