UL10397
UL10397 multi-conductor cable with PVC jacket, UL-certified and rated 105°C/600V. Flexible, flame-resistant, and reliable for control units, panels, and industrial equipment wiring.
UL10397 Multi-Conductor Cable – 600V 105°C PVC Jacketed Wire for Internal Wiring

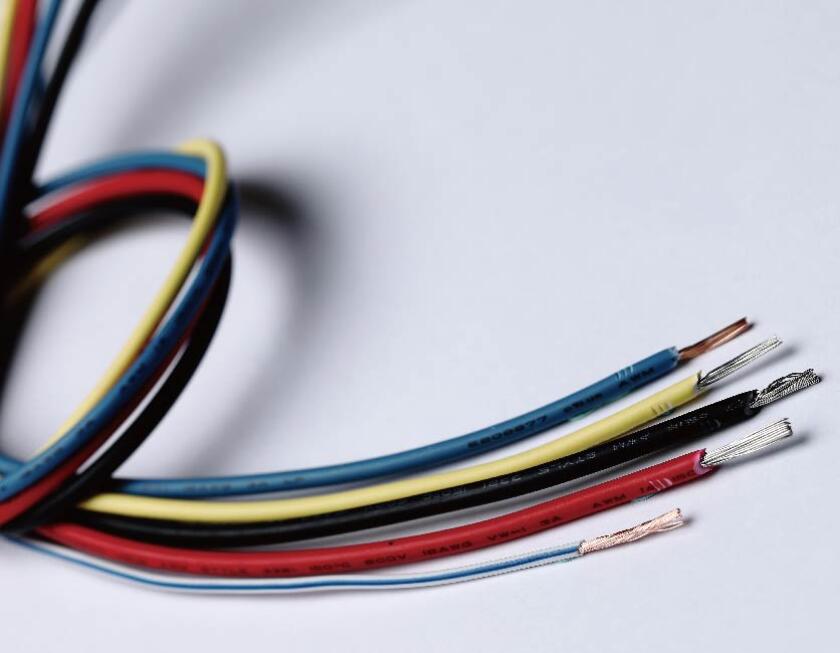

UL10397 is a UL-certified multi-conductor cable designed for the internal wiring of electronic and electrical equipment. Rated for 600V and 105°C, this cable features durable PVC outer jackets and complies with UL’s AWM Style 10397 requirements.
Its flexible structure makes it ideal for use in electrical panels, control units, and industrial equipment, where reliable insulation and flame resistance are essential. Optional shielding and outer coverings provide enhanced durability when required.

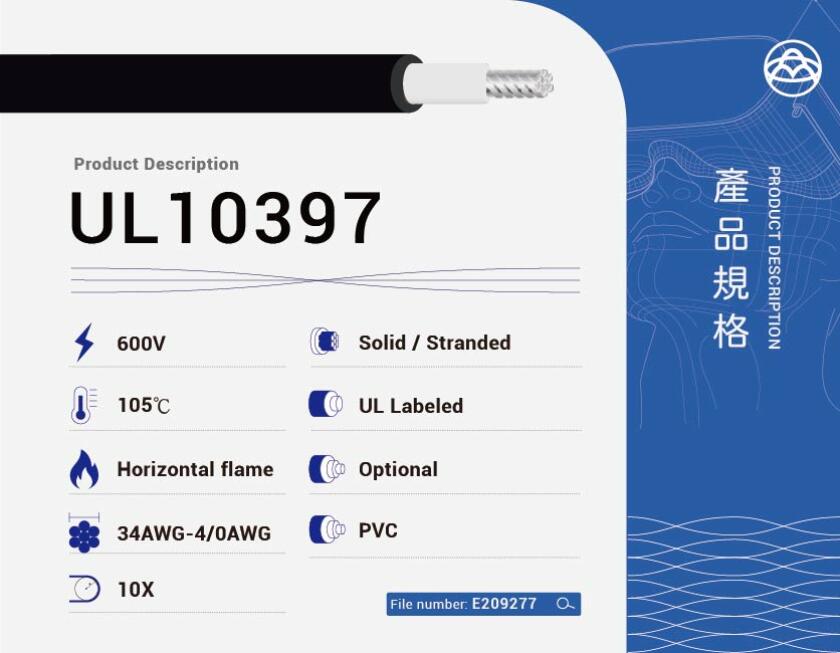

Key Features
Voltage Rating: 600V
Temperature Rating: 105°C
Conductor Size: Minimum 40 AWG, solid or stranded
Conductor Material: Bare or tinned copper
Insulation: Labeled or compliant with manufacturer's AWM procedure
Shielding: Optional
Optional Covering: 6 mil or heavier PVC over conductor assembly
Jacket Material: Extruded PVC
0.425″ or less: 45 mils avg / 36 mils min
0.426–0.700″: 60 mils avg / 48 mils min
0.701–1.500″: 80 mils avg / 64 mils min
Flame Resistance: UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 10397
Environmental Compliance: RoHS & REACH compliant
Applications
Internal wiring of electronic and electrical equipment
Multi-core signal and power transmission in control panels
Industrial machinery, lighting systems, and switchgear
Equipment requiring custom multi-conductor configurations
UL10397 cable offers versatility, mechanical strength, and stable electrical performance across a range of internal wiring applications.
