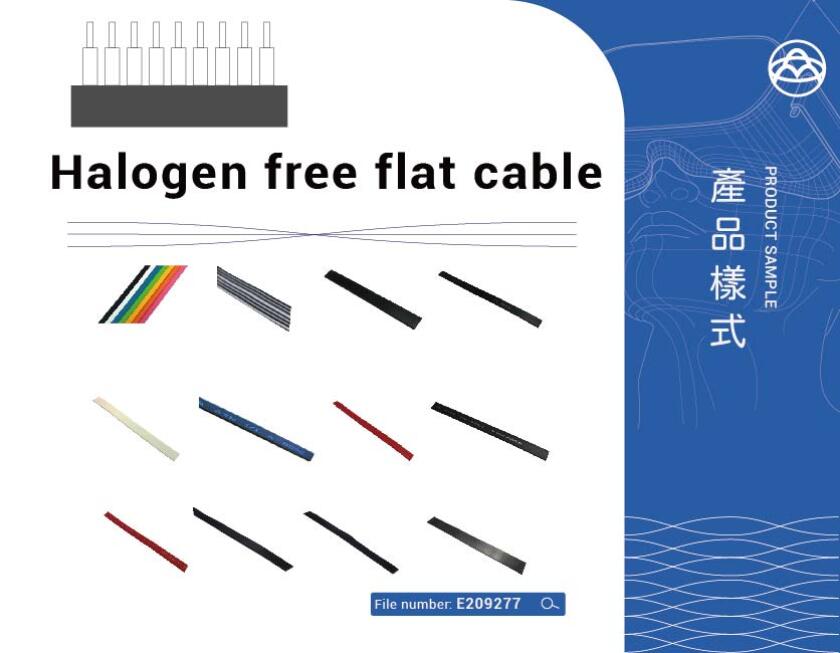

Halogen free flat cables
3A PLUS ultra-thin halogen-free flat cables support up to 24GHz for USB, SATA, SAS, PCIe, HDMI, and DP. Eco-friendly insulation ensures flexibility, heat resistance, and signal integrity.
Halogen-Free Flat Cable | Ultra-Thin Flexible Cable for High-Speed Applications
3A PLUS offers a series of ultra-thin, halogen-free flat cables designed for high-speed data transmission in compact spaces. These flexible ribbon cables support up to 24GHz bandwidth and are ideal for USB 2.0 / 3.0 / 4.0, SATA II / III, SAS, PCIe, HDMI, and DP applications. Manufactured using eco-friendly PE, TPU, or cross-linked PE insulation, the cables provide excellent flexibility, heat resistance, and signal integrity.
Features
Frequency Support: Up to 24 GHz
Wire Gauge: 22–34 AWG, solid or stranded, bare or tin-plated copper
Cable Types:
USB 2.0/3.0/4.0 flat cables (up to 10C)
SATA II / SATA III (6 GHz, 100Ω)
HDMI / DP / PCIe / SAS high-frequency cables (up to 7.5 GHz)
RJ45 / miniSAS 4-pair assemblies
Dimensions (examples):
USB 3.0 10C: 1.25 × 8.4 mm
SATA 30AWG 7C: 4.0 × 1.2 mm
HDMI: 13.2 × 1.4 mm
Materials: Halogen-free PE / TPU / TPR / Cross-linked PE (125°C)
Color Options: Black / White / Multi-color, printable
Environmental: Halogen-free, no plasticizers, RoHS compliant
Customization: OEM/ODM available
Applications
Server interconnects
AI computing and GPU module cables
Industrial control boards and IPC
Compact embedded devices and medical equipment
High-speed USB/SATA/PCIe cable assemblies
