FLRYY
FLRYY automotive cable with multiple FLRY conductors in PVC sheath, ISO 6722/JASO compliant and rated 105°C. Ideal for compact, flexible wiring in body electronics, control units, and lighting.
FLRYY Automotive Sheathed Cable | 105°C Multi-Core Lightweight PVC Control Cable

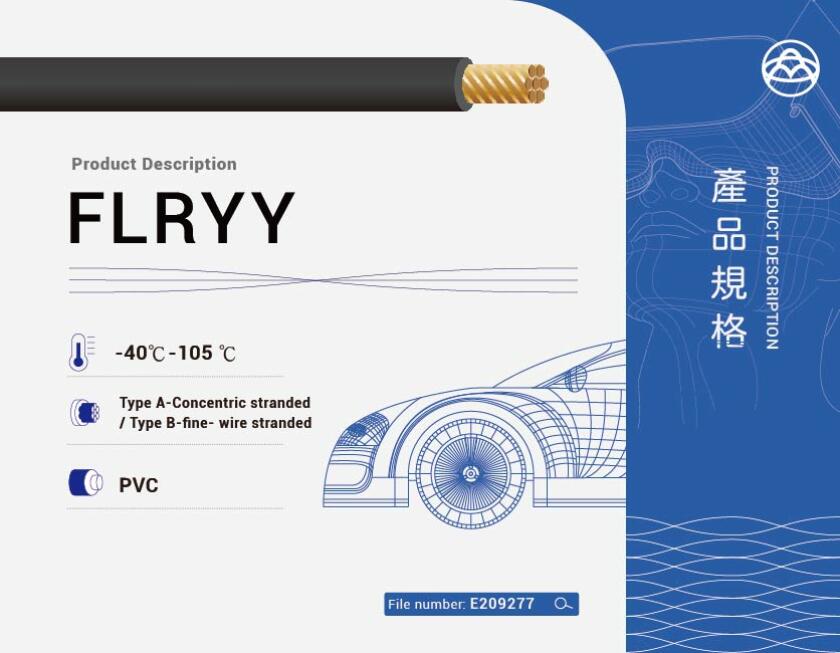

FLRYY is a high-performance multi-core automotive cable that complies with the ISO 6722-1 international standard. It is constructed using two or more FLRY-A or FLRY-B thin-wall single-core wires as inner conductors, with an outer layer of high-quality polyvinyl chloride (PVC) sheathing.
With a temperature rating of 105°C, it is specifically designed for automotive electronic systems, control modules, and lighting systems that require well-organized wiring, abrasion resistance, and easy installation.
Technical Specifications
- Standards Compliance: Meets ISO 6722-1 (FLRY series)
- Rated Voltage: 60V DC (suitable for various low-voltage power and data transmission applications)
- Operating Temperature: -40°C to +105°C
- Inner Conductors: 2-core to multi-core (available with FLRY-A standard conductors or FLRY-B flexible conductors)
- Insulation/Sheath Material: Heat-resistant thin-wall polyvinyl chloride (PVC)
- Flame Retardancy: Complies with international automotive self-extinguishing requirements
- Environmental Compliance: Meets RoHS and REACH directives
Applications
- Body Control & Communication:
Used for data transmission between Electronic Control Units (ECUs), as well as in door control modules and seat adjustment systems. - Exterior Lighting & Side Mirrors:
Ideal for wiring in headlamps, tail lamps, and powered side mirrors that require synchronized transmission of multiple signals. - Trailer & Special Vehicle Connections:
Suitable for trailer signal cables and internal control circuits in heavy-duty commercial vehicles. - Sensor Integration Wiring:
Designed for centralized wiring in parking assistance systems, camera modules, and multi-point pressure sensors. - Dashboard & Infotainment Systems:
Provides stable, vibration-resistant, and physically protected power and signal pathways for modern digital cockpits.
