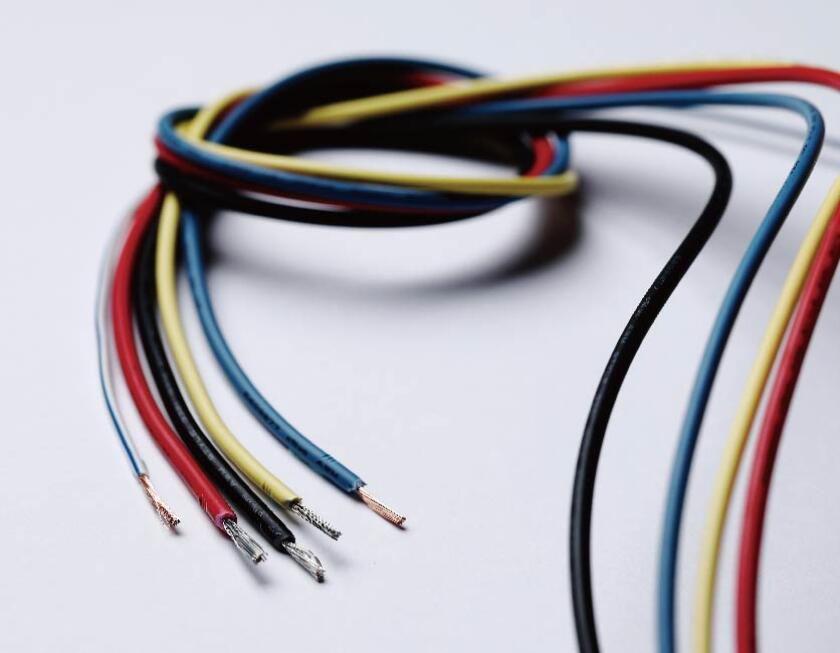

HDT Automotive Wire
HEAVY-WALL PVC INSULATED CABLE
Insulation Material
Polyvinyl Chloride (PVC - Heavy Wall)
Temperature Range
-40°C to +80°C
Voltage Rating
Up to 60V
Key Features
Flame resistance, Mechanical protection
Resistance
Abrasion & Vibration Resistant
Application
Battery Cables & Power Distribution
Key Features
ENGINEERED FOR HEAVY-DUTY PROTECTION
Operating Temp
-40°C to +80°C
Voltage Rating
Up to 60V
Insulation
Heavy-wall PVC (Abrasion Resistant)
Conductor
Stranded Bare Copper
Compliance
SAE J1128 HDT, RoHS, Lead-free
Applications
HEAVY-DUTY POWER CONNECTIVITY
- Battery & Power Distribution: Ideal for main power lines and battery-to-fuse box connections
- Heavy Vehicles: Perfect for trucks, RVs, trailers, and agricultural machinery
- Mechanical Durability: Designed for areas exposed to abrasion or fluid splash
- Off-road & Commercial: Reliable performance in harsh, high-vibration environments
HDT wire provides enhanced toughness and heat resistance, making it the preferred PVC solution for demanding automotive power and battery applications where durability and electrical reliability are critical.
Mechanical & Thermal Properties
SAE J1128 TESTING STANDARDS
| SAE Cable Type | Min. Tensile (MPa) | Min. Tensile (psi) | Min. Elongation (%) | Test Temp (°C) | Temp Class (°C) |
|---|---|---|---|---|---|
| TWP / GPT / HDT | 11 | 1600 | 125 | 110 | 80 |
| STS / HTS | 7 | 1000 | 150 | 110 | 80 |
| TXL / GXL / SXL | 10 | 1500 | 150 | 155 | 125 |
| TWE / GTE / HTE | 11 | 1600 | 200 | 150 | 120 |
* Note: The above accelerated aging temperatures are appropriate for insulating materials currently specified in this standard.
>
