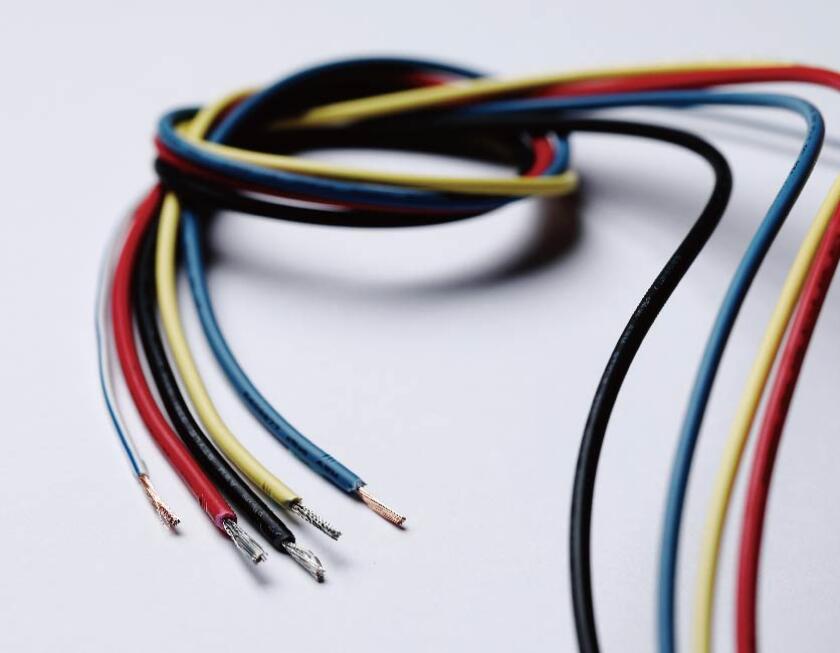

GXL Automotive Wire
STANDARD WALL XLPE INSULATED CABLE
Insulation Material
Cross-linked Polyethylene (XLPE)
Temperature Range
-40°C to +125°C
Conductor
Stranded Bare Copper
Key Features
Standard wall, High durability
Resistance
Chemical & Abrasion Resistant
Application
Wiring Harnesses & Power Distribution
Key Features
ENGINEERED FOR DURABILITY
Temperature Rating
-40°C to +125°C
Voltage Rating
Up to 60V
Conductor
Stranded Bare Copper
Insulation
XLPE (Standard Wall)
Compliance
SAE J1128 Standard
Applications
VERSATILE AUTOMOTIVE CONNECTIVITY
- Automotive Wiring Harnesses: Ideal for complex vehicle electrical systems
- Power Distribution Systems: Suitable for low voltage power circuits
- Control Circuits: Used in various control and signal transmission applications
- Engine Compartments: Withstands high-temperature environments
- Electric Vehicles (EVs): Supports modern EV electrical architectures
GXL wire's combination of high thermal resistance, flexibility, and robust design makes it a preferred choice for automotive engineers and OEMs aiming for efficient and reliable electrical systems.
Mechanical & Thermal Properties
SAE J1128 TESTING STANDARDS
| SAE Cable Type | Min. Tensile (MPa) | Min. Tensile (psi) | Min. Elongation (%) | Test Temp (°C) | Temp Class (°C) |
|---|---|---|---|---|---|
| TWP / GPT / HDT | 11 | 1600 | 125 | 110 | 80 |
| STS / HTS | 7 | 1000 | 150 | 110 | 80 |
| TXL / GXL / SXL | 10 | 1500 | 150 | 155 | 125 |
| TWE / GTE / HTE | 11 | 1600 | 200 | 150 | 120 |
* Note: The above accelerated aging temperatures are appropriate for insulating materials currently specified in this standard.
