UL1777

UL1777 hook-up wire with SRPVC insulation and optional PVC jacket, UL-certified and rated 80°C/300V. Ensures durability and signal reliability for control panels, instrumentation, and communication equipment.

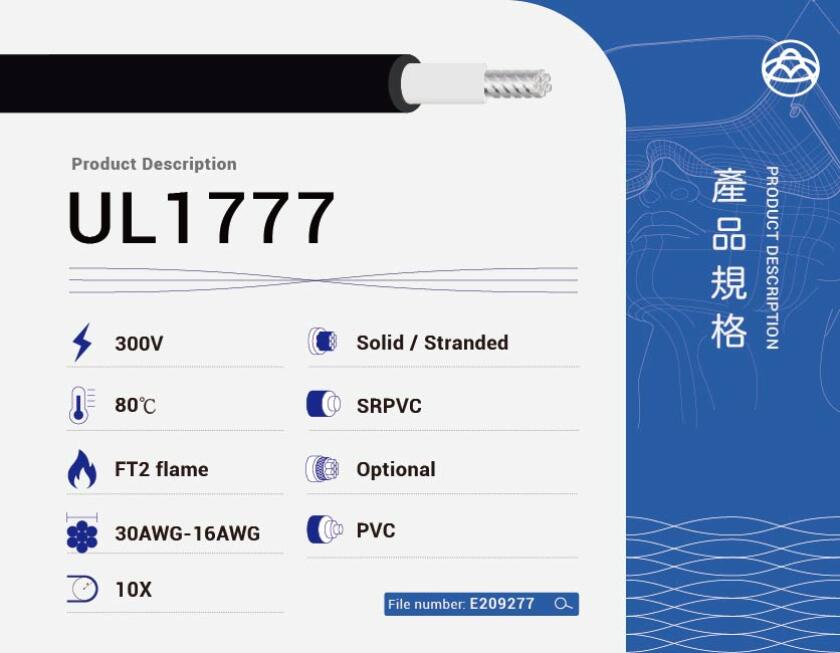

UL1777 PVC Hook-Up Wire – 300V 80°C Shielded Wire for Internal and External Electronic Applications

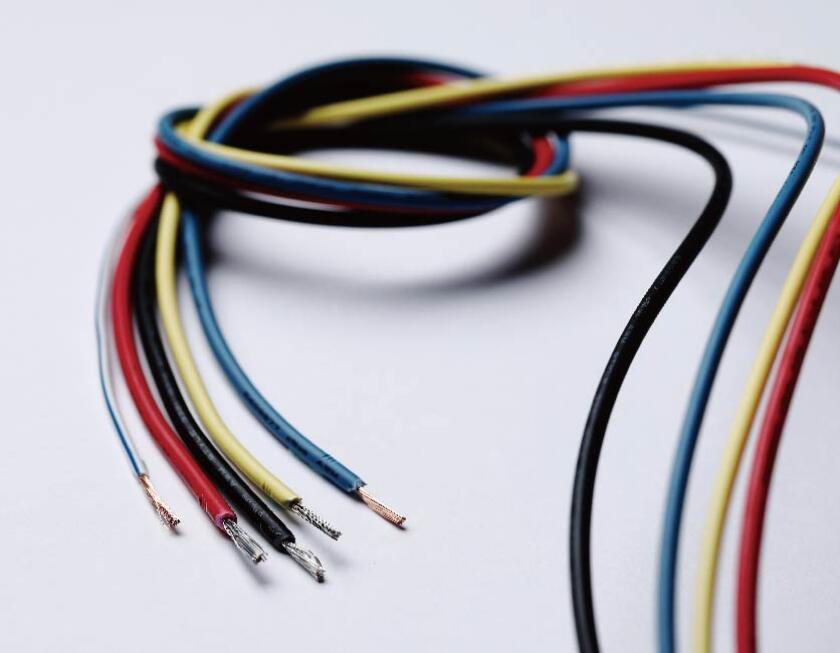

UL1777 hook-up wire is a UL-certified single-conductor wire designed for both internal and external wiring in electronic equipment. Rated at 300V and 80°C, it features a semi-rigid PVC (SRPVC) insulation and an optional extruded PVC jacket, providing enhanced mechanical protection and flame resistance.

This wire is suitable for applications requiring reliable signal transmission and durability, such as in control panels, instrumentation, and communication equipment. Its construction allows for flexibility in routing while maintaining compliance with safety standards.

Key Features

Voltage Rating: 300V
Temperature Rating: 80°C
Conductor Sizes: 30 AWG to 16 AWG, solid or stranded
Insulation: Extruded SRPVC, 9 mils minimum average thickness
Jacket: Optional extruded PVC, 30 mils minimum average thickness
Shielding: Optional
Flame Resistance: Complies with FT2 flame test
Standards Compliance: UL 758 AWM Style 1777

Applications

Internal wiring of electronic devices and equipment
External interconnects in control panels and machinery
Signal and data transmission in communication systems
Instrumentation and measurement equipment
Industrial automation and control systems

UL1777 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
