NVMe SSD Extension
3A PLUS 1.25 mm ultra-thin flat cable assemblies extend NVMe U.3 and M.3 interfaces, PCIe Gen3/Gen4 compatible up to 16Gbps. Flexible 180° bend, ideal for servers, AI, and data centers.
NVMe SSD Extension Cable

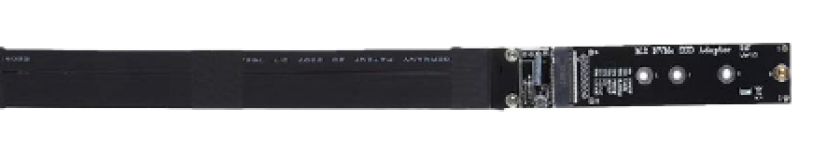

3A PLUS provides professional-grade high-speed extension solutions specifically designed for U.3 (SFF-8639) and M.3 (NGSFF/NF1) NVMe SSD interfaces. Featuring an ultra-thin 1.25mm profile, these flat cable assemblies allow for seamless high-speed data transmission in space-constrained environments such as AI computing clusters and high-density data centers.
Optimized for signal integrity and thermal efficiency:
- High-Speed Transmission: Fully supports PCIe Gen.3 and Gen.4 standards with bandwidth up to 16Gbps, ensuring peak performance without the need for additional EQ chips.
- Extreme Flexibility: The ultra-thin ribbon design supports 180° bending and folding, facilitating organized cable management and better airflow in compact server chassis.
- Server-Grade Reliability: Engineered to withstand the rigorous demands of enterprise-level storage, providing stable connections for heavy-load AI and cloud workloads.
Technical Specifications
High-Speed PCIe Gen.3 / Gen.4 NVMe Extension Solutions
High-Density Computing Advantages
Our patented structure ensures that even under extreme 180° folds, the signal impedance remains stable for Gen.4 speeds.
The 1.25mm profile significantly reduces cable bulk, optimizing cooling paths in high-density AI server racks.
By eliminating the need for EQ chips or repeaters, we provide a pure signal path with the lowest possible latency.
Rigorous signal integrity testing ensures no CRC errors even during continuous high-load data center workloads.
Applications
Enterprise Infrastructure
- AI Computing Clusters
- Hyper-Converged Data Centers
- Edge Computing Node Racks
Storage Extension

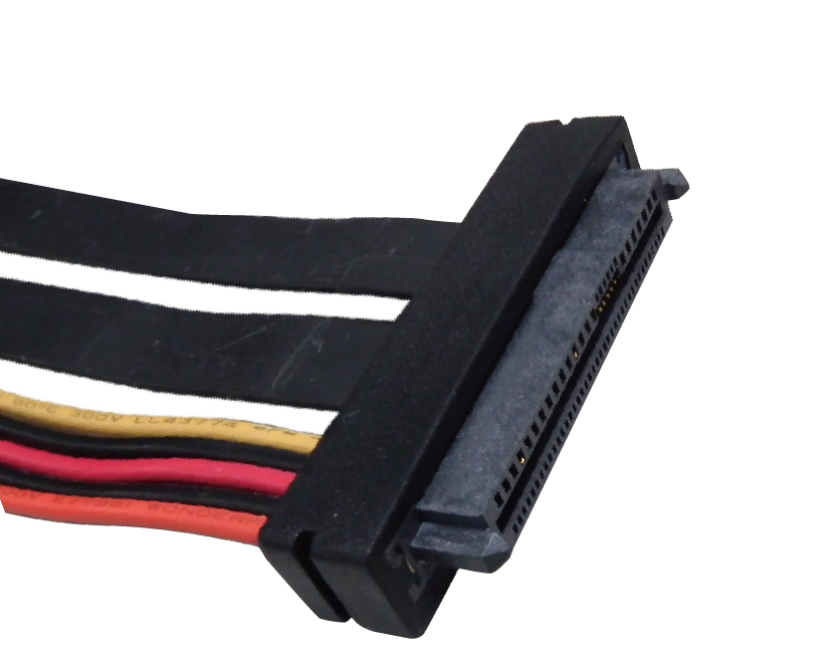

- U.3 (SFF-8639) SSD Cabling
- M.3 (NGSFF) Side-Insertions
- High-Capacity NVMe Arrays
Server Integration
- M.3 22110 / 2280 Form Factors
- Card-to-MB Interconnections
- Vertical SSD Mount Assemblies
Protocol Versatility
- PCIe Gen.4 Backplanes
- SAS / SATA Compatible Units
- Mixed-Signal Storage Bays
